Built DVB-T/T2, C/C2 and ISDB-T RF inputs plus ASI input
Fully USB powered for any Windows PC
Integrates with StreamXpert and RFXpert analysis software
Complete, portable monitoring terrestrial RF and ASI video signals
Validate off‑air RF signal quality and antenna alignment
Quickly troubleshoot issues in remote locations

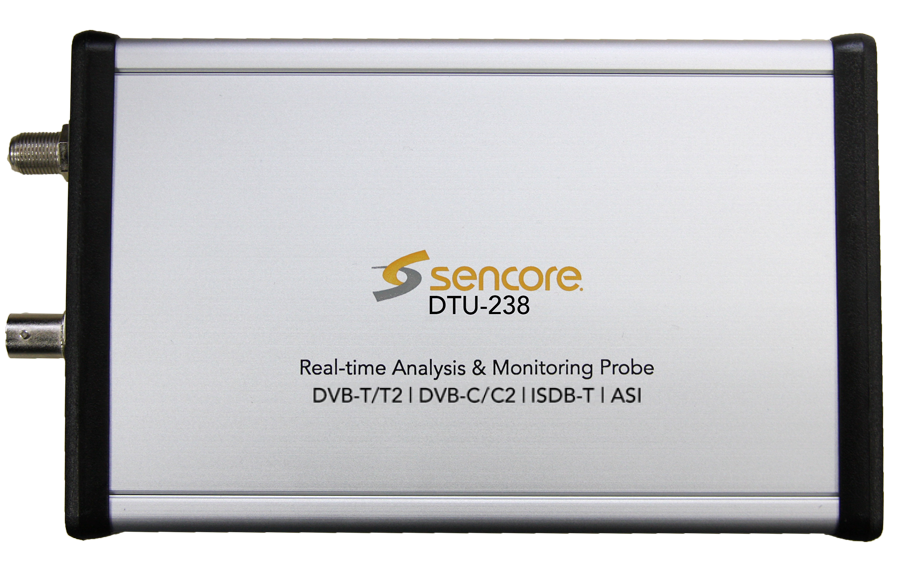

The DTU-238 RF Probe and RFXpert software are a comprehensive solution designed to provide real-time analysis and monitoring of terrestrial and cable signals (DVB-T/T2, DVB-C/C2 and ISDB-T RF channels). The RFXpert software is intended to be loaded by the end-user on a PC or laptop and work in conjunction with the DTU-238 RF Probe. RFXpert provides complete RF analysis and logging, along with transport stream recording.
RFXpert provides easy-to-read spectral displays, both constellation and eye diagram displays, and the ability to see rotated DVB-T2 constellations in their true orientation.
Adding StreamXpert 2.0 to a DTU-238 makes for a cost-effective and user-friendly HEVC/H.264/MPEG2 transport stream analyzer. Signals can be analyzed from either the ASI or RF inputs of the DTU-238 and can be validated against industry standard ETR101-290 templates. Transport streams can also be captured in the field with StreamXpert 2.0 for later use.
